KRF300A-12X2-40

• Material: Cu 99.95%, tin plated Cu/Sn.
• Inspection hole.
• For stranded (class 2) and multi-stranded (class 5) Cu conductors, for multi-stranded Cu conductors contact crimping using the Dual system is recommended.
• UL-approved, DNV approved.

Example of marking KRF: 17 (neck) Elpress logotype 70 10F (palm)

17 = Die No. 70 = mm² 10 = palm hole for M10 F = type KRF for stranded and flexible conductors.

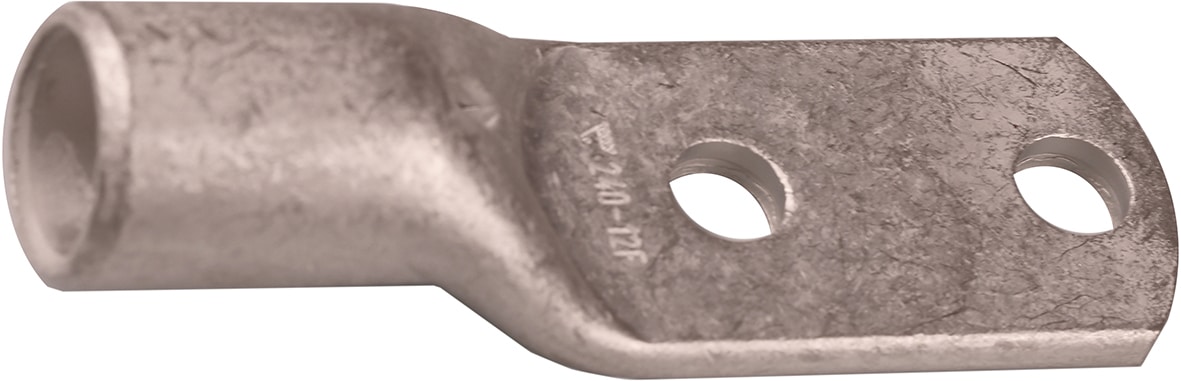

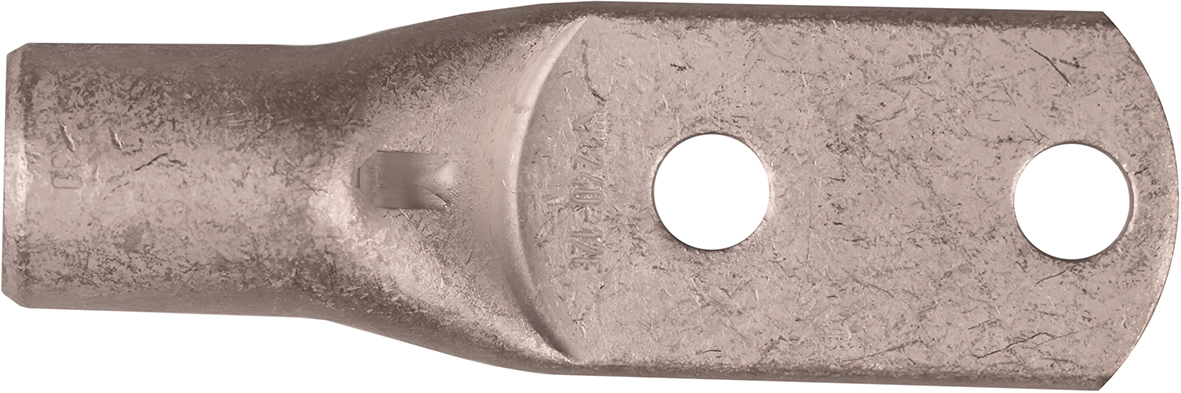

2 holed tube terminal for multi-stranded (class 5) and stranded (class 2) Cu-conductors (acc. to IEC 60228), 300 mm², with two M12 holes in the palm. Used with Elpress certified systems V1300 or V250.
