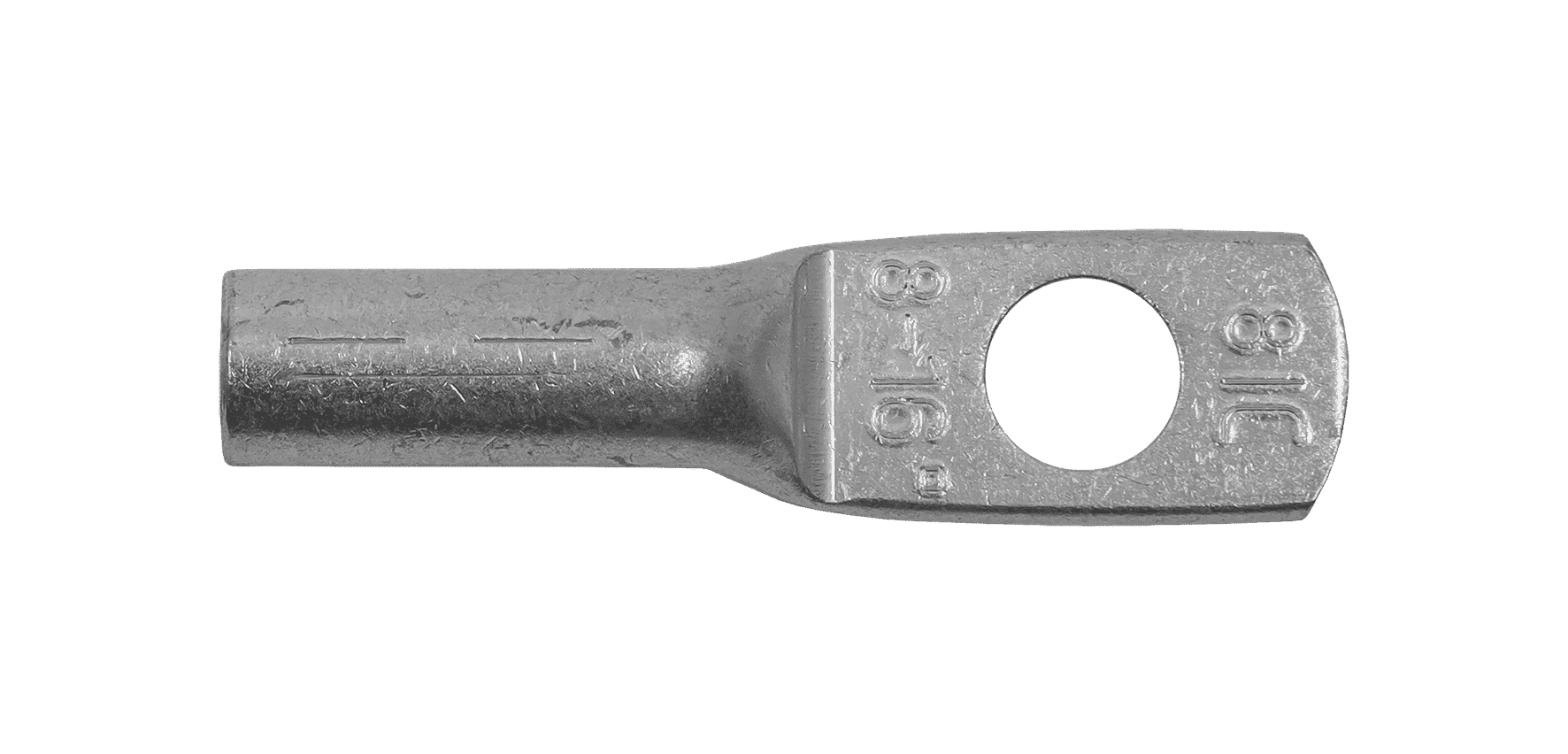

DIN 46235 tube terminals 6-400 mm²

KR16-8DIN

  • Material: Cu 99.95%, tin plated Cu/Sn.
  • Dimensions according to DIN 46235, the number of crimps is indicated on the neck of the terminal.

Example of palm marking: 70 10

70 = mm² 10 = palm hole for M10

Tube terminal for multi-stranded (class 5) and stranded (class 2) Cu conductors (acc. to IEC 60228), 16 mm², with an M8 hole in the palm. Used with Elpress certified systems V600, V1300.

  • REACH
  • RoHS
  • SYSELP
  • CE
  • UKCA
Add to cart Create product leaflet
Item number: 7301-087900
EAN: 7393487014831

W (mm): 13
N (mm): 11
N1 (mm): 10
d (mm): 5.5
D (mm): 8.5
L (mm): 36
s (mm): 20

Screw: M8
Inspection hole: Yes

AWG/MCM Cu: 6 AWG
mm² Cu: 16
Surface protection: Tin plated
Flange shape: Ring shape
Conductor category: Class 2 = stranded
Number of mounting holes: 1
Material: Copper
Bolt dimension metric (M): 8
With sight-hole: Yes
