C-sleeves 6-300 mm²

C95-120

  • Material: Cu 99.95%.
  • Unique patented solution.
  • Possible to front feed all branches.

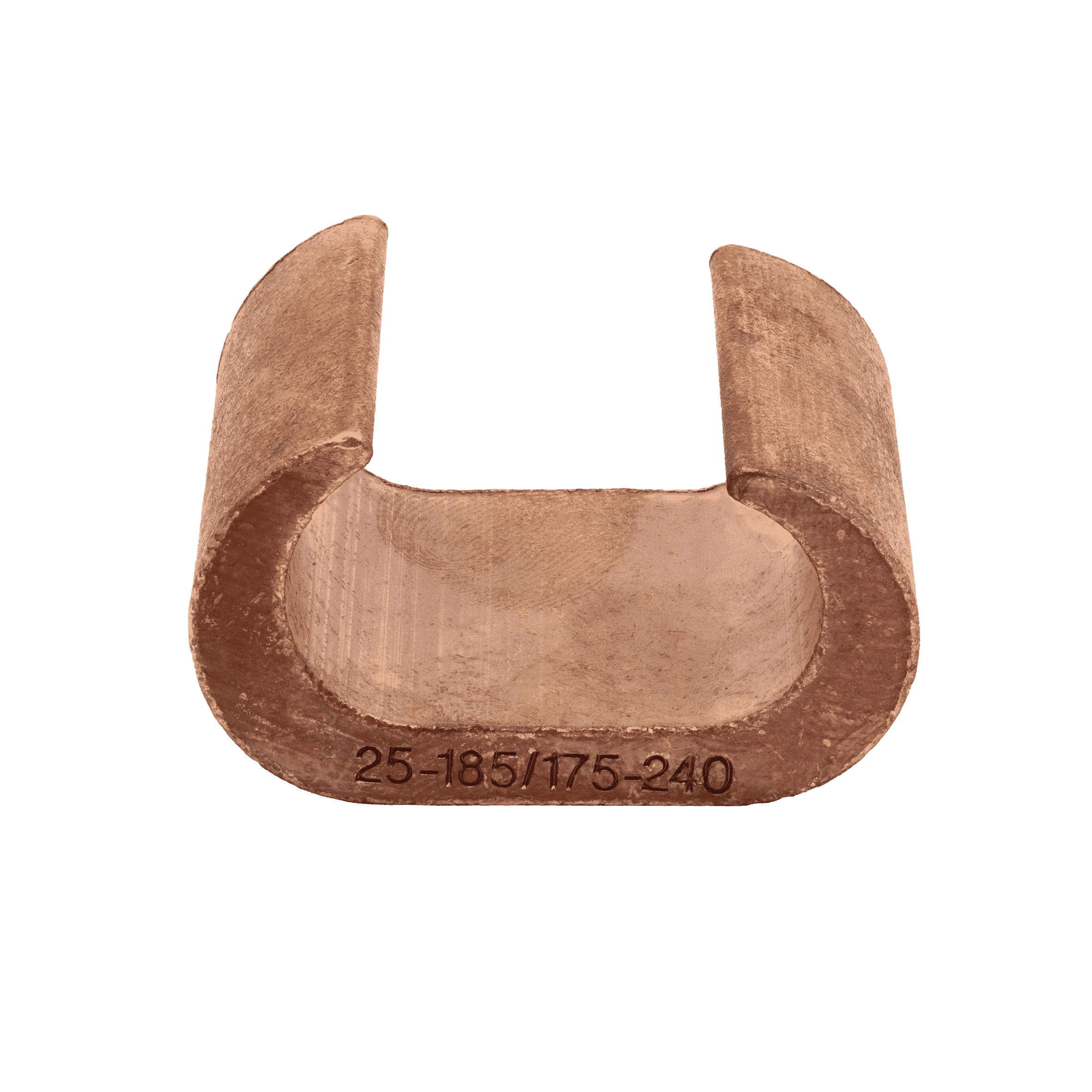

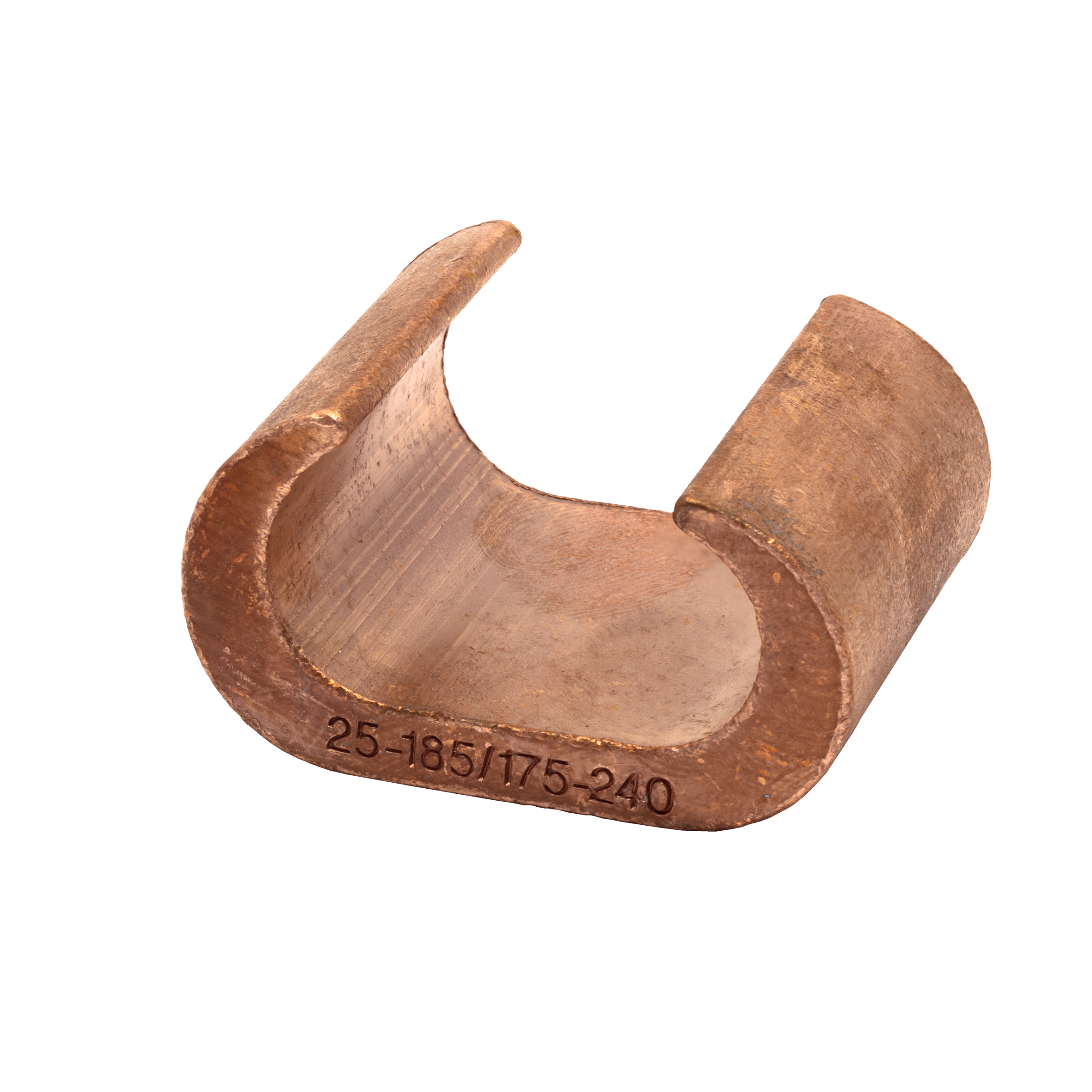

Example of marking: 25-185/175-240 Area min-max / Tot. area min-max

Elpress logotype BC15 Die pair BC15

Branching sleeve for splicing and branching earth lines as well as lightning control installations. Used with Elpress certified systems V1300, V250.

  • REACH
  • RoHS
  • SYSELP
  • CE
  • UKCA
Add to cart Crear un folleto del producto
Item number: 7309-300800
EAN: 7393487062924

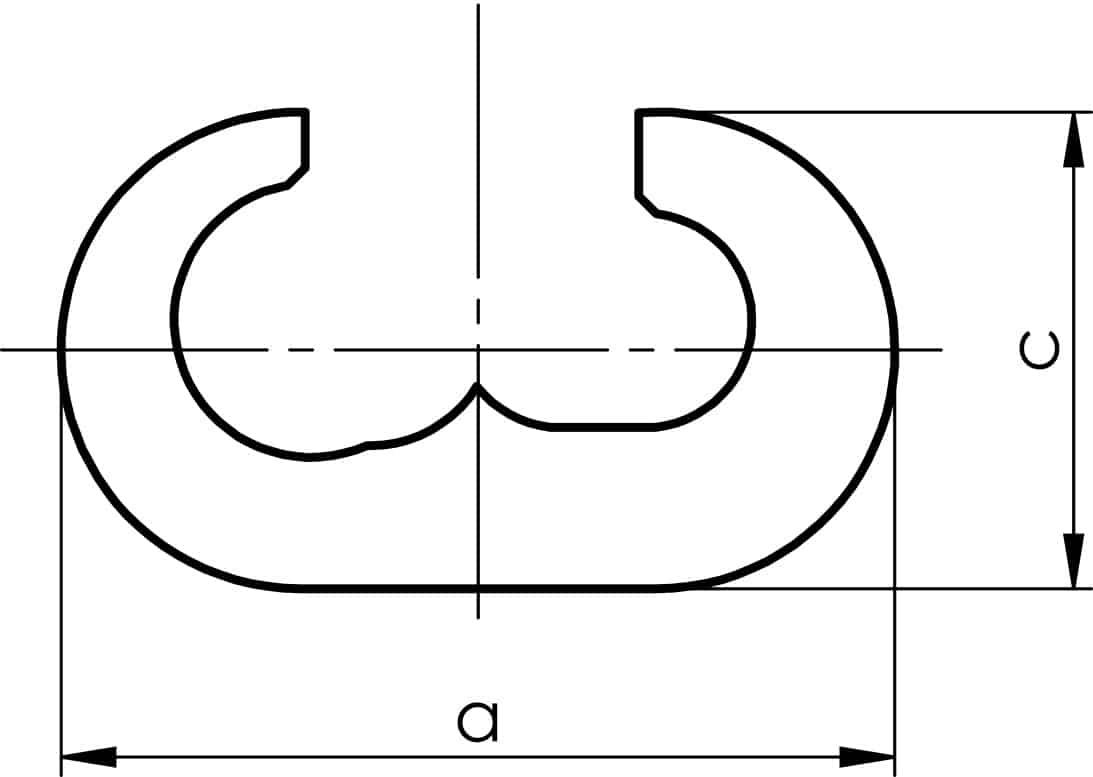

a (mm): 45

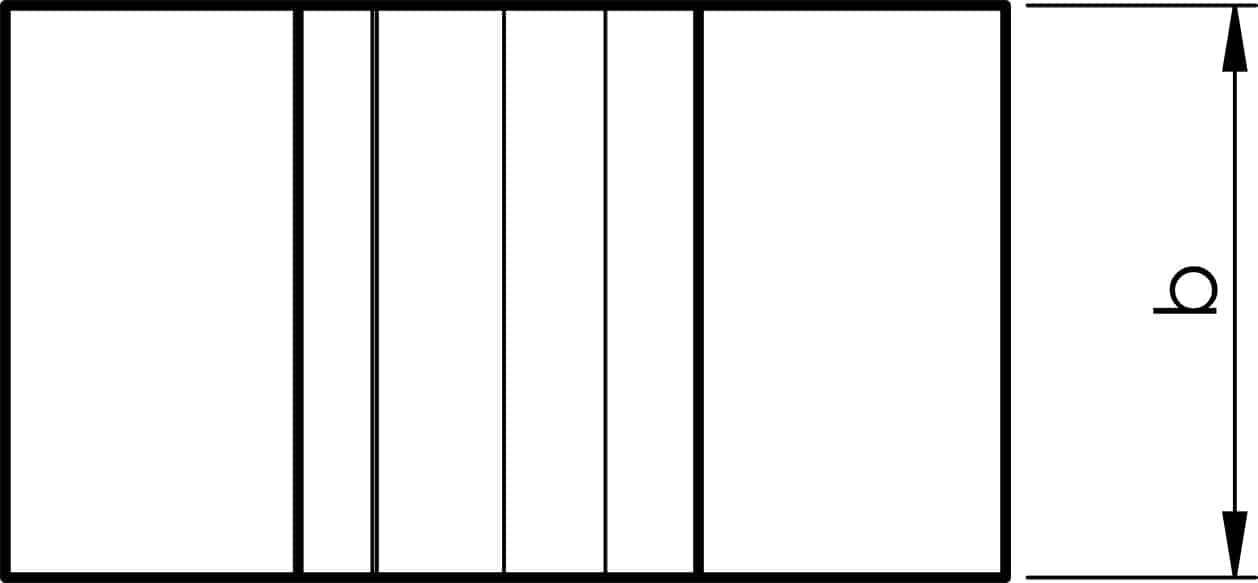

b (mm): 35
c (mm): 25.6

Side feed, Cu (mm²): 95/95, 120/70-120, 150/25-70, 185/25-50
Front feed, Cu (mm²): 95/95, 120/70-120, 150/25-70, 185/25-50
Side feed, Cu (AWG/MCM): 3/0 / 3/0, 4/0 / 2/0-4/0, 300MCM/#4-2/0, 350MCM/#4-1/0
Front feed, Cu (AWG/MCM): 3/0 / 3/0, 4/0 / 2/0-4/0, 300MCM/#4-2/0, 350MCM/#4-1/0
Surface protection: Untreated
