Shearbolt terminals 10 - 630 mm² (reversible screw)

SL150R95S-12X2-40

  • shearbolt material: brass for minimum friction
  • reversible shear-off shearbolts
  • voltage range 1-36 kV
  • meets the requirements of IEC standard 61238-1:2003
  • the terminals are of the bimetallic type for best functionality

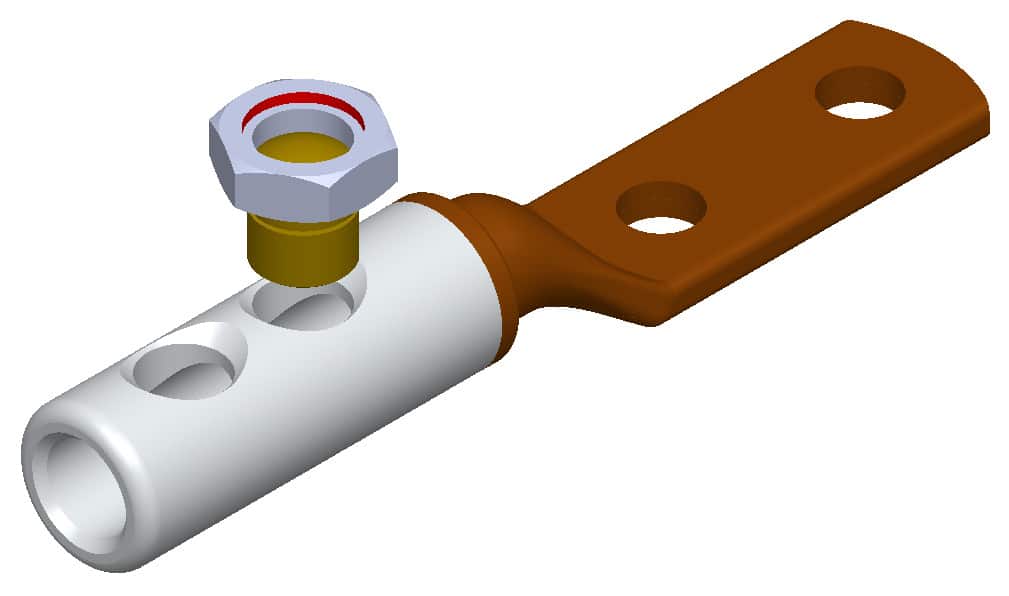

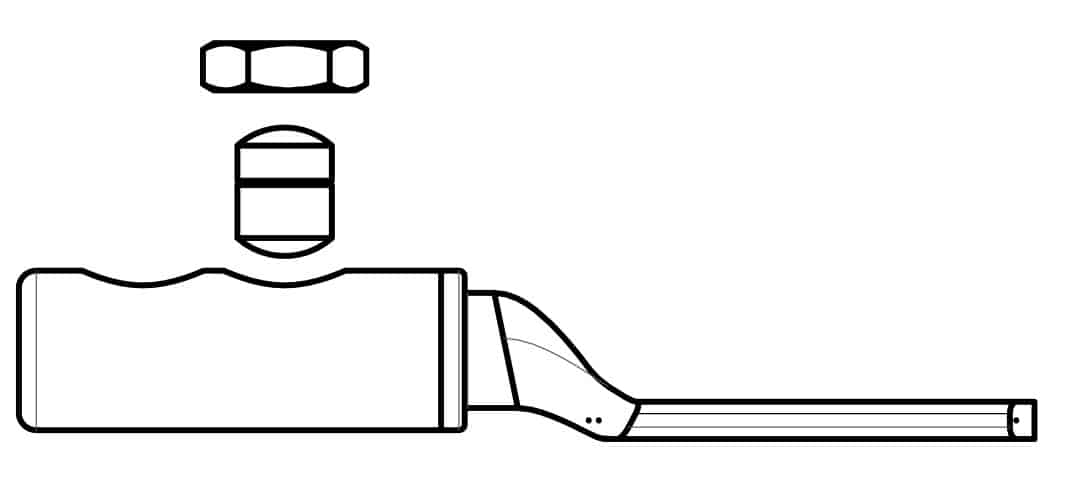

Shearbolt terminal 1-36 kV that is suitable for both Al and Cu class 1 and class 2 cable, with two M12 holes in the palm. Round cable 95-150 mm², sector shaped cable 95 mm².

  • REACH
  • RoHS
  • SYSELP
  • CE
  • UKCA
Add to cart Create product leaflet
Item number: 7334-015900
EAN: 7393487079687

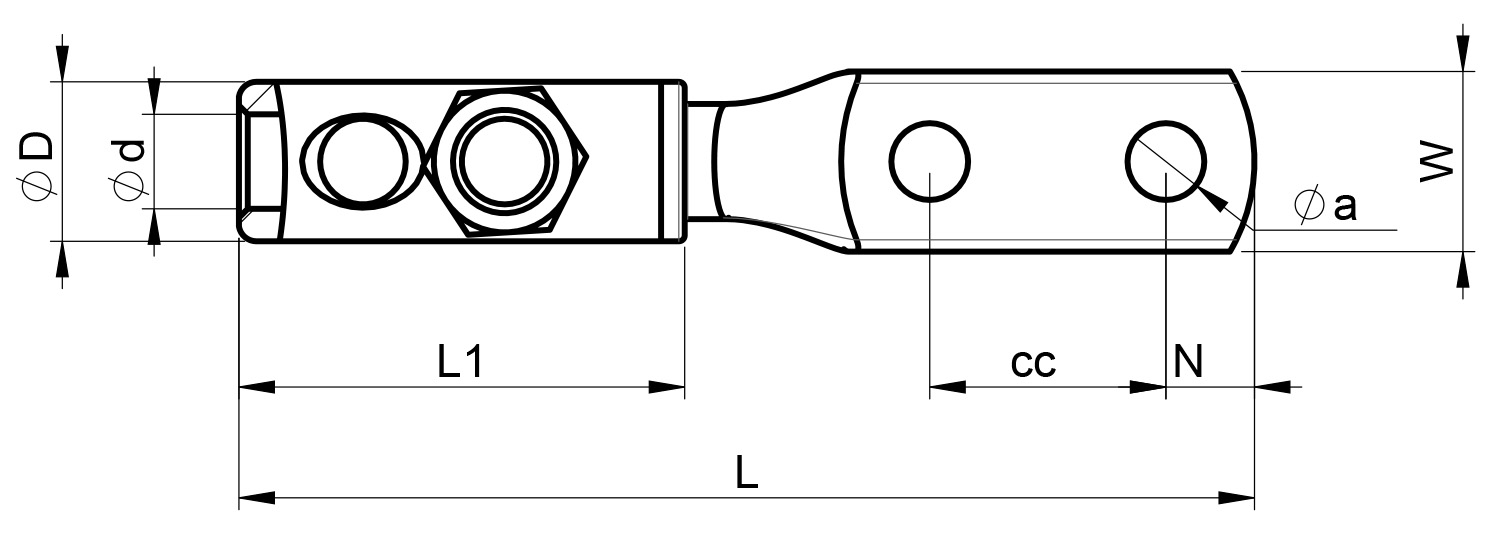

a (mm): 12
W (mm): 30.5
t (mm): 6.3
N (mm): 15
cc (mm): 40
d (mm): 16
D (mm): 27
L1 (mm): 75.5
L (mm): 172
s (mm): 76

Screw: M12x2
Max voltage (kV): 1-36

Screen conductor (mm²): 70-95
Cable type Round (mm²): 95-150
Cable type Sector (mm²): 95
Bolt dimension metric (M): 12
Nominal cross section copper, RM, Min (mm²): 150
Nominal cross section copper, RM, Max (mm²): 150
Nominal cross section copper, RE, Min (mm²): 150
Nominal cross section copper, RE, Max (mm²): 150
Nominal cross section copper, SM, Min (mm²): 95
Nominal cross section copper, SM, Max (mm²): 95
Nominal cross section aluminium, RM, Min (mm²): 150
Nominal cross section aluminium, RM, Max (mm²): 150
Nominal cross section aluminium, RE, Min (mm²): 150
Nominal cross section aluminium, RE, Max (mm²): 150
Nominal cross section aluminium, SM, Min (mm²): 5
Nominal cross section aluminium, SM, Max (mm²): 95
Nominal cross section aluminium, SE, Min (mm²): 95
Nominal cross section aluminium, SE, Max (mm²): 95
