KRFS95-10

• Material: Cu 99.95%, tin plated Cu/Sn.
• Inspection hole
• For stranded (class 2) and multi-stranded (class 5) Cu conductors, for multi-stranded Cu conductors contact crimping using the Dual system is recommended.
• Easy to install via cable gland, allows for pre-installation.
• The width of the palm is less than or as wide as the neck.
• UL-approved, DNV approved.

Example of marking KRFS: 17 (neck) Elpress logotype 70 10F (palm)
17 = Die no. 70 = mm² 10 = palm hole for M10 F = type KRF for stranded and flexible conductors.

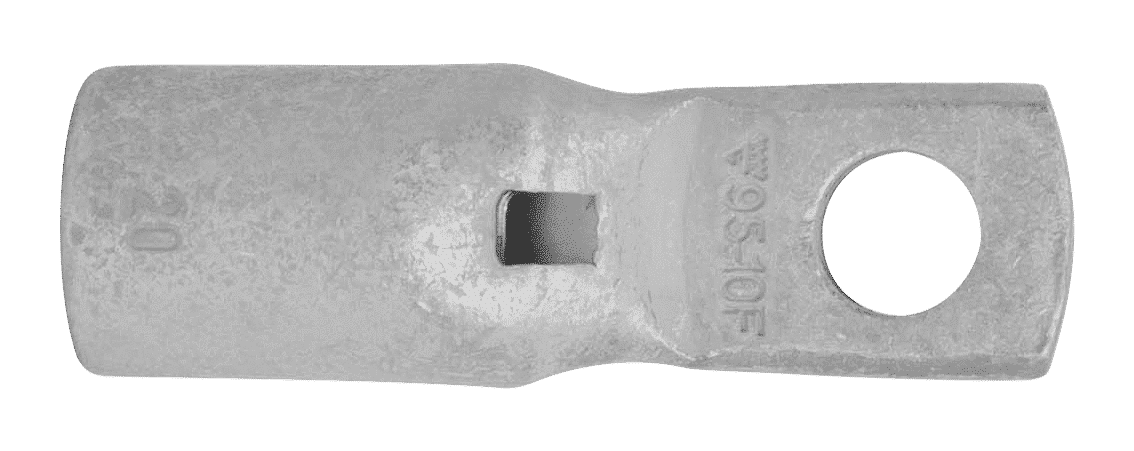

Tube terminal with narrow palm for multi-stranded (class 5) and stranded (class 2) Cu conductors (acc. to IEC 60228), 95 mm², with an M10 hole in the palm. Used with Elpress certified systems V600, V1300, V250.
