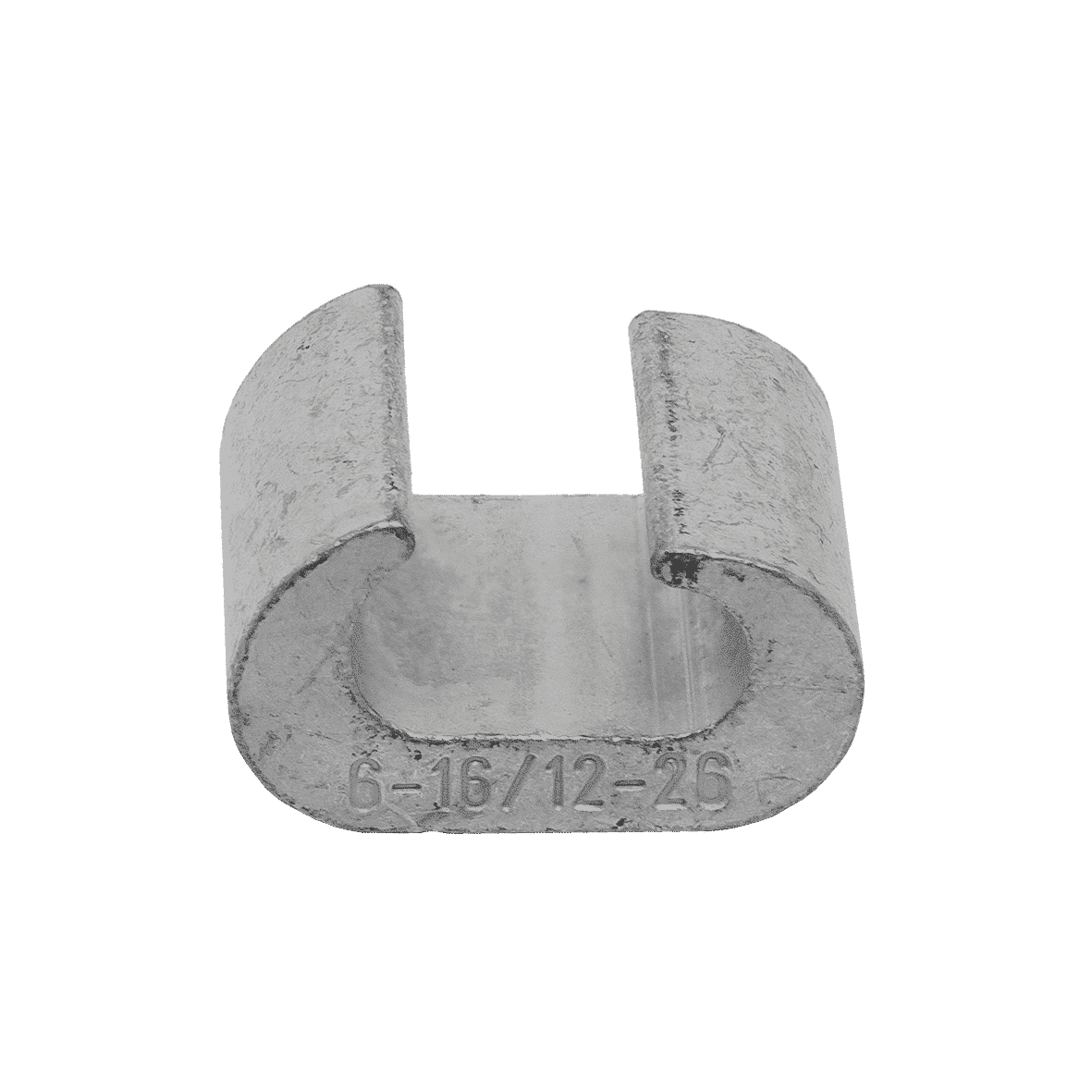

C-sleeves 6-300 mm²

C6-10

  • Material: Cu 99.95%, tin plated Cu/Sn.
  • Unique patented solution.
  • Possible to front feed all branches.

Example of marking: 6-16/12-26 Area min-max / Tot. area min-max

Elpress logotype BC5 Die pair BC5

Branching sleeve for splicing and branching earth lines as well as lightning control installations. Used with Elpress certified systems V600, V1300, V250.

  • REACH
  • RoHS
  • SYSELP
  • CE
  • UKCA
Add to cart Create product leaflet
Item number: 7309-300400
EAN: 7393487062900

a (mm): 17.6
b (mm): 14
c (mm): 10

Side feed, Cu (mm²): 6/6-16, 10/6-16
Front feed, Cu (mm²): 6-10/6-10, 16/10
Side feed, Cu (AWG/MCM): #10/#10-6, #8/#10-6
Front feed, Cu (AWG/MCM): #10-8/#10-8, #6/#8
Surface protection: Tin plated
