AKS150-150

• Connector from Al conductor to Cu conductor.
• Stranded/solid Al conductors, stranded/multi-stranded Cu conductors.
• For multi-stranded Cu conductors, contact crimping using the Dual system is recommended.
• Two crimps are required for Al, normally one for Cu.

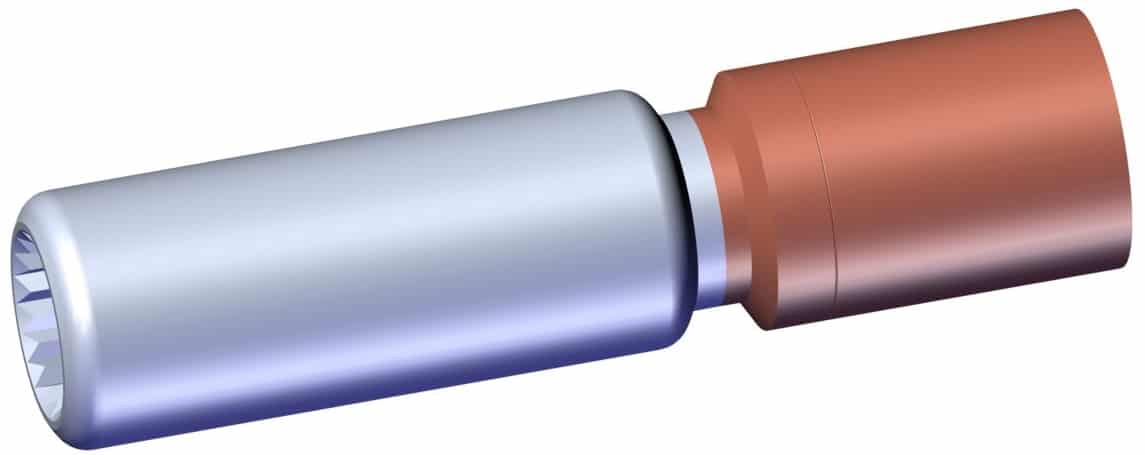

AlCu through connector, from Al conductor to Cu conductor. For stranded Al cable 150 mm², or for solid Al cable 185 mm², to stranded/multi-stranded Cu cable 150 mm². When crimping the Cu section, place the dies between the mark on the sleeve and the edge of the Cu section. Used with Elpress certified systems V1300, V250.
